DS70US

NEW UL1449 ed4 Type 1 CA SPD!

The DS70US is a universal SPD for the most demanding AC Power applications. The DS70US Series protects any single or three phase voltage up to 690Vac from the effects of lightning and switching transients. These SPD are approved to the new UL1449 4th Edition (effective March. 2016) and have completed all SCCR, intermediate and low current testing without any upstream fuse or overcurrent protection.

The DS70US has the highest UL1449 In rating at 20kA 8/20us and a per module surge capacity of 75kA 8/20us. There is no product on the market with such versatility and capability as CITEL's latest SPD range. These SPD employ a replaceable module with real-time diagnostics via a visual fault indicator and remote contacts. The DS70US is backed by a 10-year no COA warranty. Free replacement with no conditions of acceptability to worry about.

UL1449 4th Edition - Type 1 CA

Data Sheet
Install Sheet
Video - CITEL Surge Protector for Industrial Applications
Series, In-Line Connection Option - DSDT

MLPC1-277L-V/50

The MLPC1-277L-V/50 is a economical, compact SPD for LED Drivers. The SPD protects any 120-277Vac single phase driver from the effects of lightning and switching transients. The unit is installed in series with the load and turns off the LED light fixture when maintenance is required. The MLPC incorporates a CITEL's "no leakage current" NLC technology which significantly increases the life expectancy of the unit while providing protection against temporary overvoltages.

The MLPC1-277L-V/50 has screw terminal connectors only on one side of the SPD to make replacing parallel SPD's very easy.

UL1449 4th Edition - Type 2 CA
ANSI/IEEE C136.2, Elevated 20kV/10kA
ANSI/IEEE C62.41, Category C High Exposure 10kV/10kA

The MLPC is a economical, compact SPD for LED Drivers. The SPD protects any 120-277Vac single phase driver from the effects of lightning and switching transients. The unit is installed in series with the load and turns off the LED light fixture when maintenance is required. The MLPC incorporates a CITEL's "no leakage current" NLC technology which significantly increases the life expectancy of the unit while providing protection against temporary overvoltages.

The MLPC has screw terminal connectors with an in/out, pass through design.

UL1449 4th Edition - Type 2 CA
ANSI/IEEE C136.2, Elevated 20kV/10kA
ANSI/IEEE C62.41, Category C High Exposure 10kV/10kA

DS250VG

CITEL model DS250VG is a heavy duty AC Surge Protection Device (SPD) for high risk, low tolerance electrical service entrance applications. The DS250VG provides protection against the direct and indirect effects of lightning and is particularly useful in a high lightning area where the risk of heavy surge current or even direct strike is high, i.e. buildings equipped with lightning rods.

UL1449 3rd Edition

Data Sheet

CITEL model DS70RS is a standard duty AC Surge Protector (SPD) used in distribution or control panel applications. The DS70RS is a single pole module. It is configurable for all 1, 2, and 3 phase application up to 70kA.

UL1449 3rd Edition
(UL1449 4th Edition - Type 1CA for -400, -600 *Other voltages 4CA)

Data Sheet

CITEL model DS40 is a standard duty AC Surge Protector (SPD) used in distribution or control panel applications. The DS40 is a single pole module that can be combined with other DS40 modules or a DS40G (N-G Mode Only) module. It is configurable for all 1, 2, and 3 phase application up to 480V AC.

UL1449 3rd Edition
(UL1449 4th Edition - Type 1CA for -400, -480 *Other voltages 4CA)

Data Sheet

CITEL model DS240 surge protectors are used mainly for distribution panels of single-phase and three-phase networks. They provide common-mode protection (between the active conductors and ground) and are available with an option remote alarm.

The DS240 is built with a plug-in module and a fixed base, which allows for easy access to protection modules.

UL1449 3rd Edition

Data Sheet

NEW UL1449 ed4 Type 1 SPD!

Characteristics,
- Surge Capacity to 50kA 8/20us per mode, 100kA 8/20us Total
- Hybrid TOV circuit provides immunity during high line conditions
- No leakage current design increases life expectancy of SPD
- Visual LED fault indicator and audible alarm
- NEMA 6 (exceeds NEMA 4X or 4)
- Optional Type 2 Listed with UL1283 Filter (Data Sheet)

UL1449 4th Edition - Type 1 Listed

Data Sheet

DS150E

CITEL model DS150E is a heavy duty AC Surge Protection Device (SPD) for high exposure applications such as direct lightning strikes, capacitor bank switching and large inductive loads. The DS150E is a single pole device that incorporated a multi-varistor circuit. It offers unmatched mechanical flexibility and can be installed in various worldwide system configurations with voltages up to 480V AC.

UL1449 3rd Edition

Data Sheet

DS40G

CITEL model DS40G is a standard duty AC Surge Protector (SPD) used in distribution or control panel applications. The module is used only in the Neutral (N) to Ground (PE) mode and must be used in combination with 1 or more model DS40 Series.

UL1449 3rd Edition

Data Sheet

MSB10

These surge protector units are designed to protect a single-phase input and are recommended for mounting on a board or in a utility box. This series lets you choose a product by housing (metal or plastic), dimensions, performance, connection mode (series or parallel), or type of connection (wires or screw terminal block).

Data Sheet

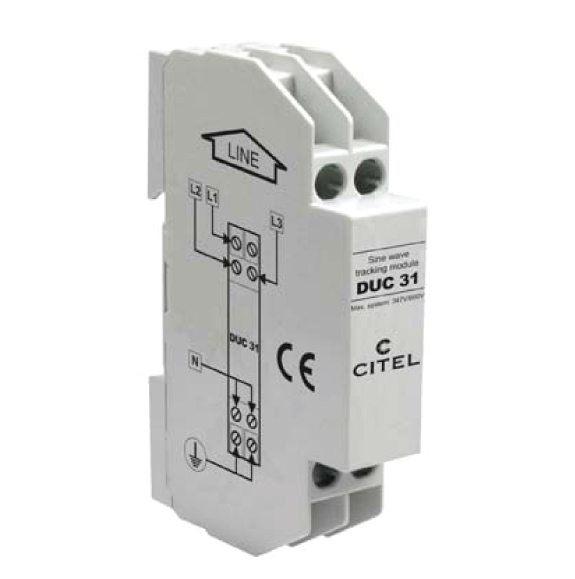

DUC

CITEL model DUC is a three phase din rail mount filter that is listed to UL1283. These sine wave tracking devices compliment AC Surge Protective Devices (SPDs) and will help to completely protect downstream equipment from transient over voltages as well as noise.

UL1283
